Plastic profiles are used across construction, furniture, electrical systems, transportation, interior design, and many other applications.
They include products such as window and door frames, edge trims, channels, seals, decorative strips, cable covers, and structural sections. Although these products can look simple, producing them consistently requires controlled processing, accurate shaping, cooling, sizing, and finishing.
A plastic profile production line brings these stages together into a coordinated manufacturing process. Understanding how the line works helps explain how raw plastic materials are transformed into continuous profiles with defined dimensions, surface characteristics, and functional properties.
What Is a Plastic Profile Production Line?
A plastic profile production line is a series of connected machines and processing units designed to manufacture continuous plastic sections with a specific cross-sectional shape.
Unlike injection molding, which produces individual parts inside a mold, profile extrusion creates a continuous length of material. The plastic is processed through an extrusion system and shaped through a profile die. After forming, the profile is cooled, calibrated, pulled, cut, or wound depending on the product design.
The complete line can be configured according to the type of polymer, profile geometry, dimensions, production volume, and required surface finish.
How Plastic Profile Manufacturing Works
The basic manufacturing process follows several coordinated steps.
1. Material Preparation
Production begins with plastic raw materials. Depending on the application, manufacturers may use materials such as PVC, polyethylene, polypropylene, ABS, or other thermoplastics.
Materials can be supplied as pellets, granules, powders, or blended formulations. Additives may also be incorporated to influence characteristics such as flexibility, color, UV resistance, impact performance, flame behavior, or processing stability.
Proper material preparation is important because moisture, contamination, inconsistent formulation, or incorrect material ratios can affect the final profile.
2. Feeding and Extrusion
Prepared material enters the extrusion system through a controlled feeding mechanism. Inside the extruder, rotating screws move the material forward while heat and mechanical energy soften and homogenize it.
The extrusion system must maintain suitable processing conditions. Temperature, screw speed, material feed rate, and pressure can influence output consistency.
The goal is to produce a stable flow of molten plastic before it reaches the forming die.
3. Profile Die Formation
The die is one of the most important components in profile manufacturing. It determines the basic cross-sectional shape of the extruded material.
As the softened plastic passes through the die opening, it takes on the required profile geometry. Complex profiles may contain multiple cavities, walls, grooves, channels, or reinforced sections, making die design particularly important.
A well-controlled die helps maintain dimensional consistency throughout continuous production.
4. Calibration and Cooling
Freshly extruded plastic remains soft and can deform easily. It therefore needs to be cooled and stabilized shortly after leaving the die.
Calibration equipment helps maintain the intended dimensions while cooling systems gradually reduce the material temperature. Vacuum calibration may be used for certain profile designs to help hold the material against calibrated surfaces.
Cooling must be controlled carefully. Excessive or uneven cooling can contribute to deformation, dimensional variation, or internal stress.
5. Haul-Off or Pulling

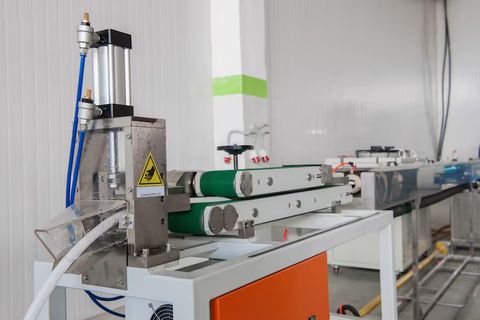

Once the profile has been sufficiently stabilized, a haul-off unit continuously pulls it through the production line.
The pulling speed needs to correspond with the extrusion output. If the haul-off operates too quickly or slowly relative to material flow, profile dimensions can change.
Consistent pulling is therefore essential for maintaining uniform thickness, width, length, and overall geometry.
6. Cutting, Winding, or Finishing
The final stage depends on the type of profile being manufactured.
Rigid profiles may be cut into predetermined lengths using an automatic cutting system. Flexible or smaller profiles may be wound into coils or rolls. Some products can undergo additional processes such as drilling, punching, printing, laminating, surface treatment, or assembly.
The finished profile is then inspected and prepared for its intended application.
Main Equipment Used in a Profile Production Line
A typical plastic profile production line can contain several major systems:
- Material hopper and feeding equipment
- Extruder
- Screw and barrel assembly
- Profile extrusion die
- Calibration table
- Cooling system
- Haul-off unit
- Cutting equipment
- Winding or collection equipment
- Control and monitoring systems
Additional equipment may be integrated when a profile requires co-extrusion, surface decoration, lamination, embossing, or other specialized processing.
The configuration is not identical for every product. A simple trim profile may require fewer stages than a complex multi-layer construction profile.
Why Process Control Matters
Plastic profile manufacturing depends heavily on process stability. Small variations can affect the final product because extrusion is a continuous operation.
Important variables include melt temperature, extrusion pressure, screw speed, feed rate, cooling conditions, pulling speed, and die alignment.
Modern production lines can use sensors and automated control systems to monitor operating conditions. Data from these systems can help operators identify deviations and maintain more consistent manufacturing conditions.
Process control also supports material efficiency by reducing unnecessary variation and production waste.
Common Applications of Plastic Profiles
Plastic profiles are found in many industries because extrusion can produce a wide range of shapes.
In construction, profiles may be used for window frames, door components, wall panels, trims, protective edges, and sealing systems. Electrical applications can include cable channels, protective covers, and insulation-related components.
Furniture manufacturers may use plastic edging, decorative strips, protective profiles, and structural inserts. Industrial equipment can also incorporate plastic channels, guides, covers, and protective sections.
The selected plastic and profile design depend on factors such as mechanical requirements, temperature exposure, chemical resistance, flexibility, appearance, and expected service conditions.
Quality Factors to Consider
Profile quality is not determined by appearance alone. Several characteristics can influence whether a finished profile performs correctly.
Dimensional accuracy: Width, thickness, wall dimensions, and cross-sectional geometry should remain within the required tolerances.
Surface quality: Scratches, bubbles, discoloration, roughness, and other visible defects may affect appearance or performance.
Material consistency: Stable material composition supports predictable physical properties.
Shape stability: The profile should retain its intended geometry after cooling and during normal use.
Mechanical performance: Depending on the application, strength, flexibility, impact resistance, or hardness may be important.
Quality inspection can combine visual checks, dimensional measurements, material testing, and application-specific performance evaluations.
Factors That Influence Production Line Selection
Choosing an appropriate production configuration starts with understanding the profile itself rather than simply focusing on machine capacity.
Key considerations include the polymer being processed, profile dimensions, cross-sectional complexity, required output, cooling requirements, cutting or winding method, and desired surface finish.
For complex profiles, die design and calibration capabilities become especially important. For flexible products, controlled pulling and winding may receive greater attention. Profiles requiring multiple materials may need co-extrusion equipment.
The production line should therefore be matched to the manufacturing requirements of the specific profile.
Improving Manufacturing Efficiency
Efficient profile manufacturing depends on coordination between material preparation, extrusion, cooling, pulling, and finishing.
Maintaining stable processing conditions can reduce dimensional variation and minimize rejected material. Regular inspection of dies, screws, cooling systems, calibration components, and pulling equipment can also support reliable operation.
Production data can provide additional insight into material consumption, output rates, temperature behavior, downtime, and quality trends. Using this information can help manufacturers identify process improvements without compromising product requirements.
Conclusion
Plastic profile production lines support continuous manufacturing by integrating material feeding, extrusion, profile shaping, cooling, calibration, pulling, and finishing into one coordinated process. Each stage contributes to the dimensions, appearance, consistency, and functional performance of the final profile.
Understanding these systems makes it easier to evaluate how different plastic profiles are produced and why process control is important. From construction frames and trims to electrical channels and industrial components, extrusion-based profile manufacturing provides a flexible method for producing continuous plastic sections in many shapes and sizes.
